Automatic Hydraulic Stretching Machine , High Performance Stretch Forming Machine

Multi Station Hydraulic Stretching Machine For Filter Housings Making Automatic Stretcher

1, General description

The automatic production line is mainly used for making small filter housing. Five steps: (1) punch round piece (2) first stretching (3)second stretching (4) third stretching (5) trimming.

2, Machine Specifications

1. General speaking: this machine includes 4 sets of hydraulic system units and 1 set of auto-feeding system, each workstation is connected by the mechanical hands to achieve the automation of material feeding and the 4 stations working.

2. Auto-feeding system

The Max. diameter of round steel piece: Ф420 mm

Thickness of round steel piece: 0.5~1 mm

The Max. height of round steel pieces stack: 300 mm

3. The pressure of 4 main-hydraulic cylinders: 600 kN , 300 kN, 300 kN, 300/500 kN

4. The pressure of 4 down-hydraulic cylinders: 200 kN,100 kN, 100 kN, 60 kN

5. The Max. work-length of moving transom: 800 mm

6. The Max. obturating height: 1550 mm

7. The Max. work-length of 4 down-hydraulic cylinders: 280 mm, 350 mm, 350 mm, 380 mm

8. Motor power: 0.75 kW + 4 ×15 kW

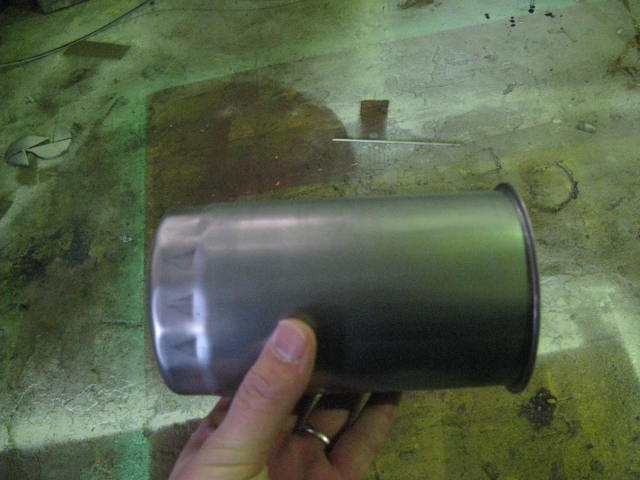

9. The Max. dimension of housing product: Ф136 mm x H356 mm

10. Air pressure: 0.5 ~ 0.85 Mpa

Air flow rate: ≧ 1300 L/min

3, Machine picture
